Focus on product quality, not test system infrastructure.
Every PCBA is unique. Your test system doesn't have to be.
Each PCBA requires different test points, measurements and functional tests. This legitimately requires customization. But much of the tester infrastructure is fundamentally the same.
Instrumentation architecture
Test software
Signal Routing
System Enclosure
Data/reporting
Deployment infrastructure
PRE-ENGINEERED
Don't start from scratch
Cyth’s proven architecture is built on a reusable hardware/software infrastructure. Less custom engineering means reduced development time and risk.
CONFIGURABLE
Change products. Not wiring.
Cyth’s unique integrated interposer/switch matrix provides software-configured routing. Different PCBA fixtures can use different signal mapping with no manual internal rewiring between product configurations.
MODULAR
Build for today. Adapt for tomorrow.
Customize the instrument mix for your product with the industry standard PXI instrumentation. You can add or change Add/change I/O capabilities to
Support evolving products and test requirements.
Change products. Not wiring.
PCBACheck is powered by software-defined signal routing. One PCBA tester – multiple PCBAs.

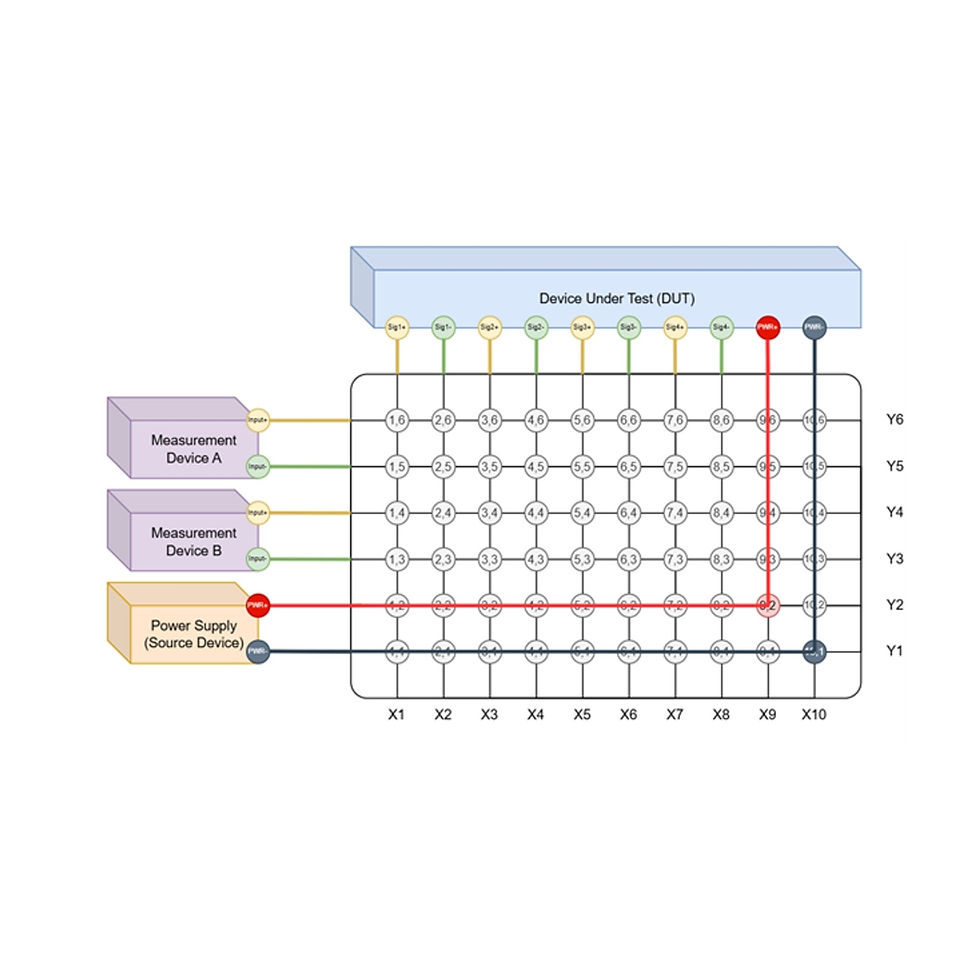

Integrated switch matrix built into interposer
I/O mapping configurable in software
Load different PCBA variants and flexibly map signals
No need to manually reroute internal tester wiringators, transceivers
Interposrer design produces tidy wiring

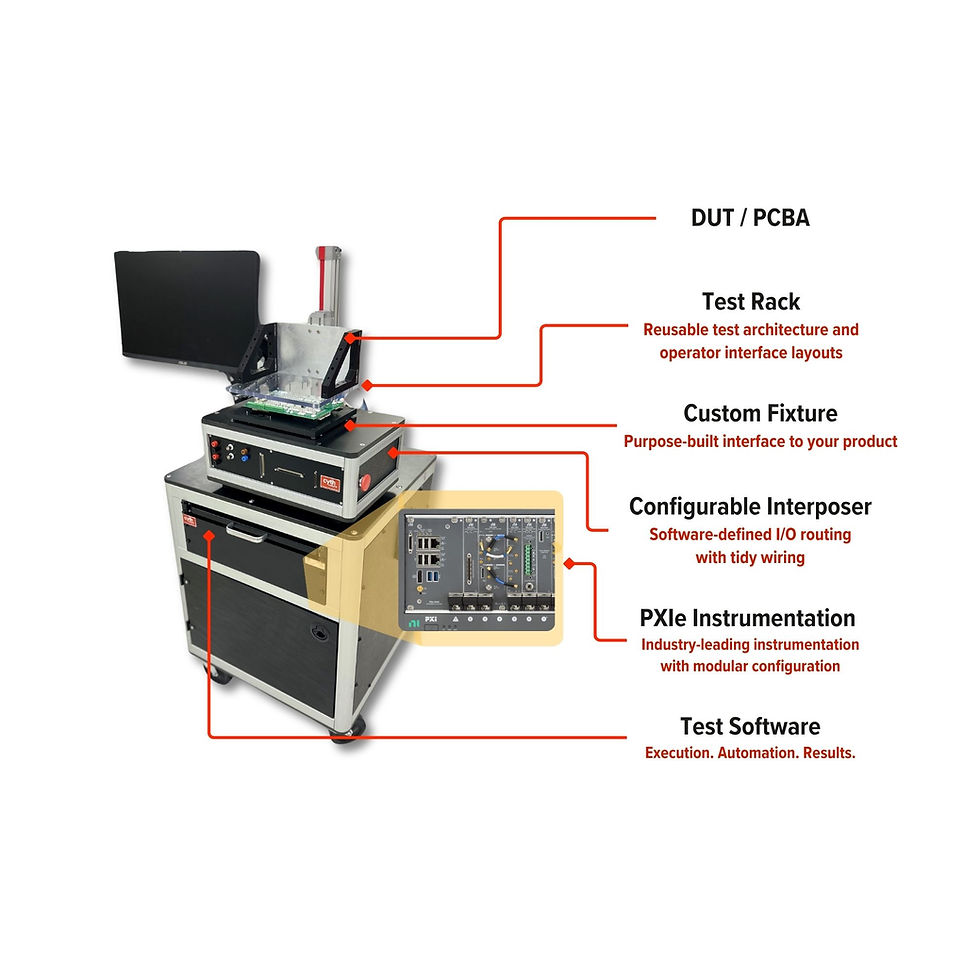

PCBACheck System Components
Deploy sooner with a pre-designed test architecture flexible to your application.
PXIe Instrumentation
Modular PXIe instruments, controllers, and interfaces for any test plan.
Signal acquisition: Oscilloscopes, digital multimeters
Signal generation: Waveform and pulse generators
Sensor-based measurements: Temperature, PCBA strain, environmental
RF: Vector signal analyzers, generators, transceivers
Programmable power & readback: Power supplies, loads, & source measure units
Interfaces: Serial, UART, CAN, wireless (WiFi, BLE), custom
Switching and signal routing: Configurable relays, multiplexers, matrices
.jpg)
.png)
.png)
What can PCBACheck do?
The perfect balance of custom and standard for ATE
MEASURE
-
Voltage
-
Current
-
Resistance
-
Temperature
-
Frequency
-
Waveforms
STIMULATE
-
Power
-
Analog outputs
-
Digital I/O
-
Loads
-
Waveform generation
COMMUNICATE
-
CAN
-
LIN
-
Ethernet
-
Serial
-
USB
VALIDATE
-
Functional behavior
-
Software
-
Communications
-
Performance
-
Pass/fail limits
-
Custom protocol validation
What can PCBACheck do?
The perfect balance of custom and standard for ATE
Power & Voltage Testing
-
Power supply voltage levels (VCC, VDD, VREF)
-
Voltage regulator output verification
-
Power-up and power-down sequence testing
-
Overvoltage and undervoltage protection testing
-
Voltage tolerance and stability testing
-
Current sense and power consumption testing
Digital Signal Testing
-
Clock signal frequency and accuracy testing
-
Digital I/O functionality (control lines, data lines)
-
Logic functionality testing (gate-level and functional)
-
PWM signal generation and measurement
-
Digital control signals (reset, enable, interrupt)
Analog Signal Testing
-
ADC input functionality and accuracy testing
-
DAC output functionality and accuracy testing
-
Analog sensor input validation
-
Temperature sensor accuracy and calibration
-
Voltage reference verification
Communication Protocol Testing
-
Serial communication and bus test: RS-232, RS-485, SPI, I2C, UART
-
CAN bus protocol verification
-
Custom protocol validation
Memory & Data Testing
-
RAM read/write functionality testing
-
Flash memory programming and verification
-
Data integrity testing (checksum, CRC validation)
-
Firmware upload and validation
-
EEPROM / Flash programming and readback
User Interface Testing
-
Button and switch functionality testing
-
LED indicator verification
-
Display output testing (LCD, OLED, LED segments)
-
Touch interface validation
-
Audio output quality testing
System Integration Testing
-
Motor control functionality testing
-
Relay control output verification
-
External trigger input testing
-
Sensor calibration and validation
-
Environmental condition testing
"We were bringing up a new product line and needed a functional test system fast. The team at Cyth helped plan the project, fully developed the fixturing and DUT connectivity, and provided a software framework we could easily update with new tests. We simply didn't have the bandwidth to take on all this work ourselves while supporting existing lines."
J. Rodrigo
Engineering Manager, Electronics Manufacturing
